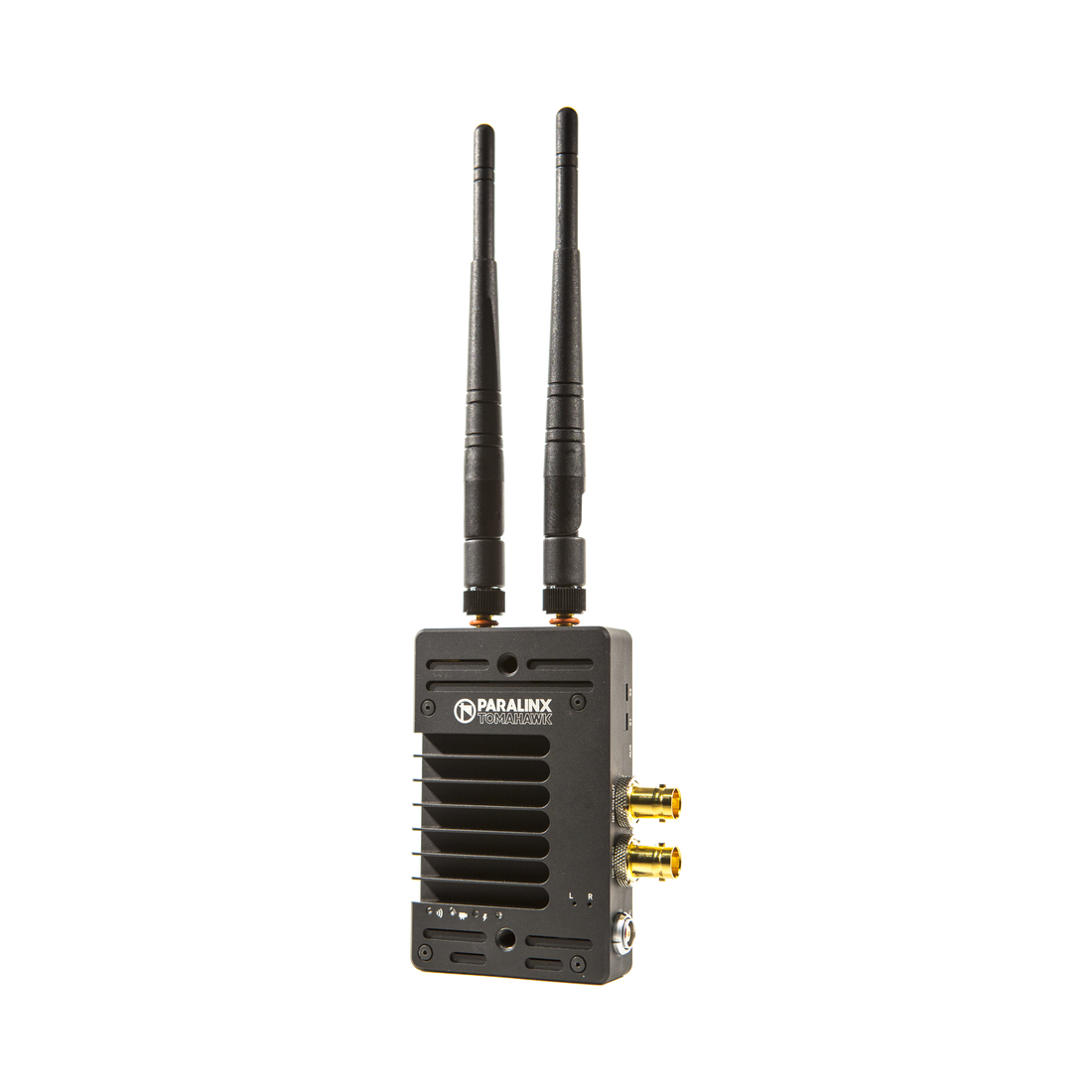

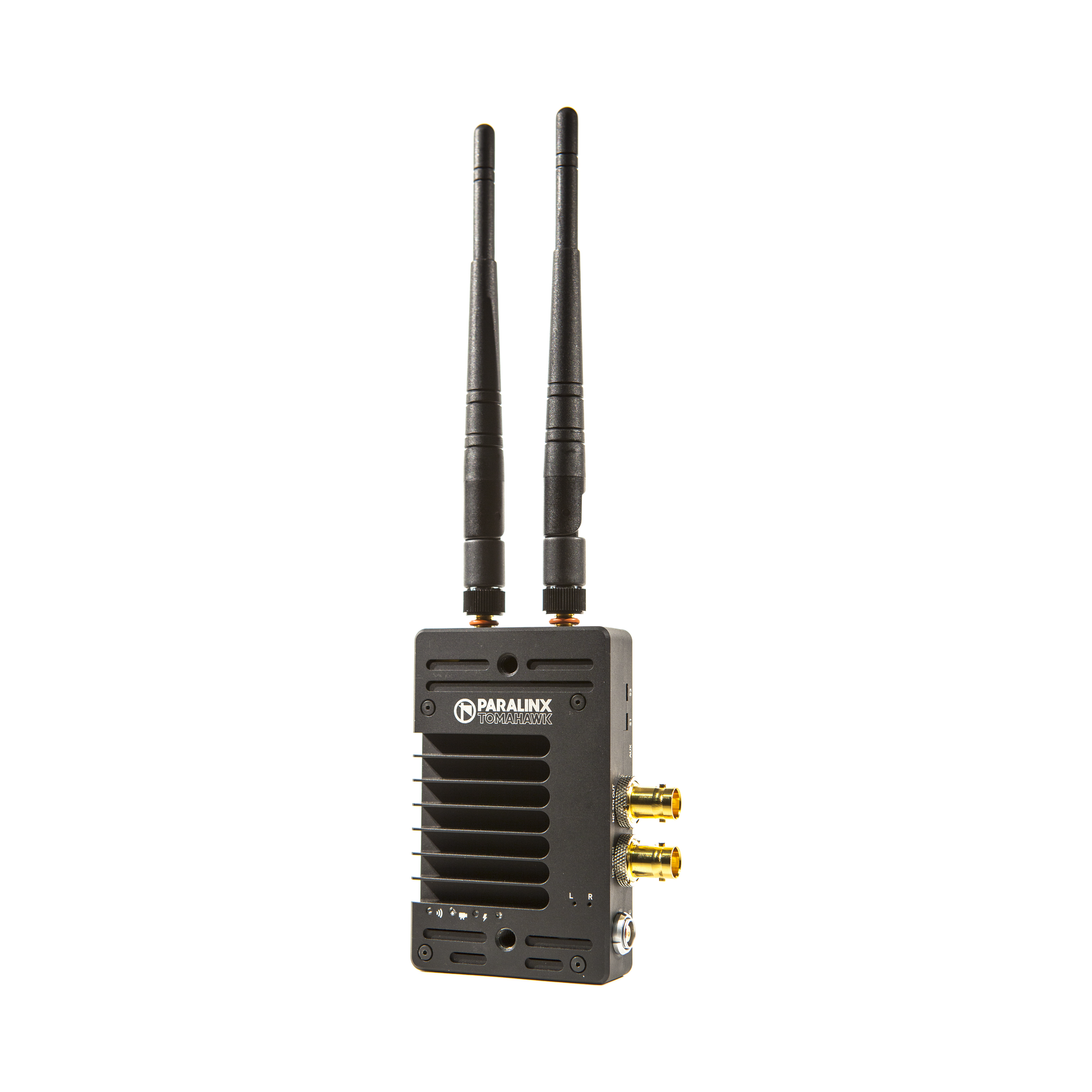

Paralinx Tomahawk SDI Transmitter (ONLY) - Refurbished

Thank you for your interest in Teradek Products.

We will send you an email when this item is in stock and ready to ship.

*Refurbished item may show signs of gentle use that do not affect product function. All items will be quality tested before shipment.*

The
Paralinx Tomahawk SDI Transmitter is a revolutionary HD Video transmission system offering real time wireless HD with unprecedented range for your television, film, broadcast, industrial or UAV/UAS application.

The Paralinx Tomahawk SDI Transmitter, when paired with a Paralinx Tomahawk Receiver, has a range of up to 2000 feet (600m) with default antennas and still maintains an incredible sub-1ms latency glass-to-glass. The transmitter features a 2-Pin power connector capable of a wide 7-17V unregulated input voltage. The Tomahawk SDI transmitter features SDI input as well as loop-out capabilities.

Please note this transmitter will ONLY work with Paralinx Tomahawk receivers and the Teradek Sidekick (not Arrow-X, Arrow, or Arrow Plus).

The Tomahawk transmits Full-HD video (up to 1080p/60 4:2:2) with less than 1 millisecond delay and is capable of handling up to 4 simultaneous receivers. The transmitter weighs approximately 6.0oz/170g (without antennas).

Tomahawk SDI Transmitter Features:

  • Lightweight Minimalist design for Handheld, Steadicam, Gimbal, and UAV Payload

  • Transmitter features SDI input

  • Rugged machined-aluminum enclosure

  • Ultra long-range transmission - Up to 2,000 feet (600 meters) *

  • REAL-TIME viewing - Less than 1 millisecond latency

  • Uncompressed full-HD video signal allow critically accurate monitoring

  • Multicast capable

  • 128 bit AES Encryption - Secure transmission

  • Operates on 5gHz frequency band

  • Conforms to major technical and environmental standards including FCC, CE, MIC (TELEC) and RoHS Specifications

* Range may vary depending on environment and interference

Dimensions (Tx): 4" x 2.5" x 0.8" (not including antennas)
Dimensions (Tx): 108mm x 67mm x 21mm
Weight (Tx): 6.0oz / 170g (without antennas)
