Paralinx Ace HDMI Receiver Only - Refurbished

Thank you for your interest in Teradek Products.

We will send you an email when this item is in stock and ready to ship.

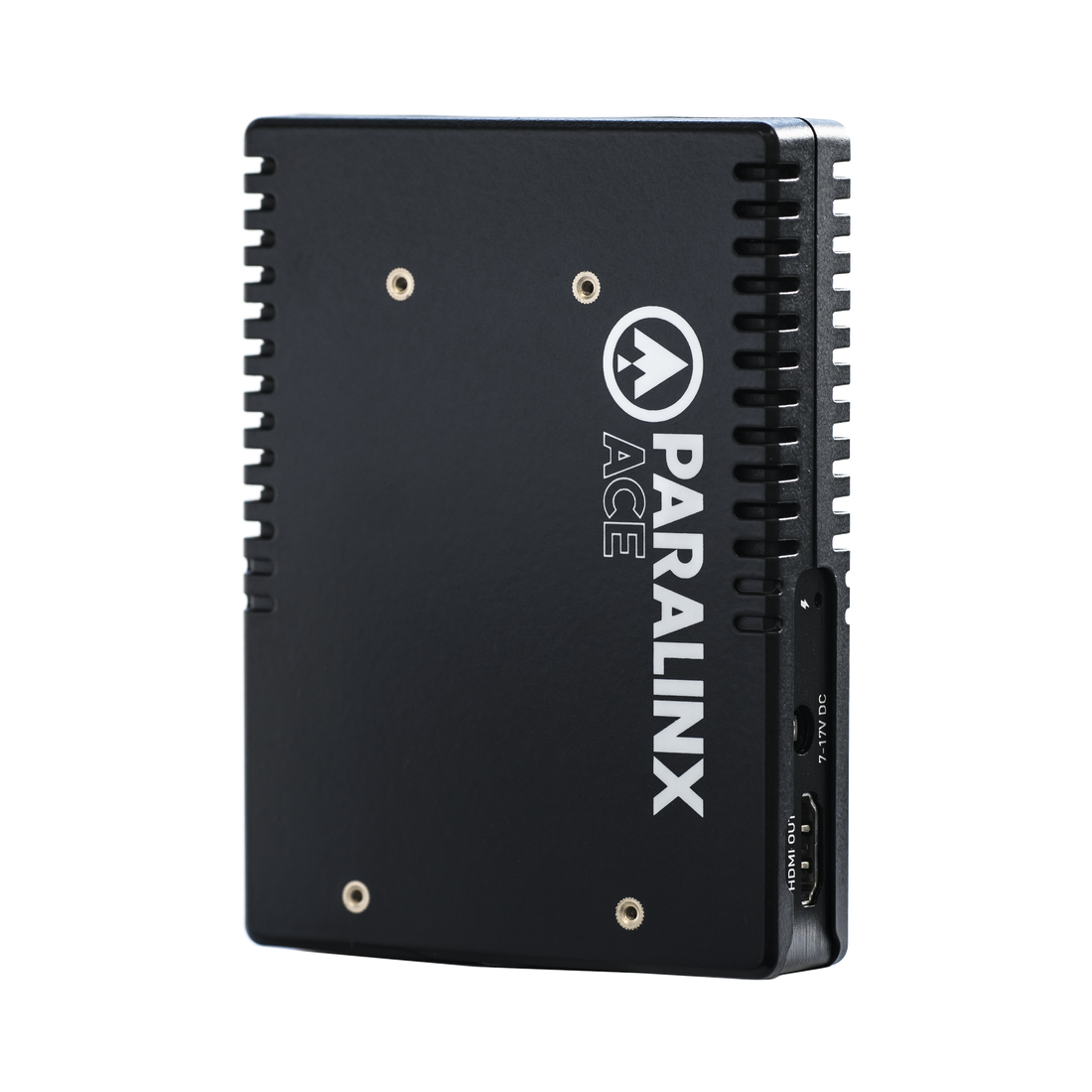

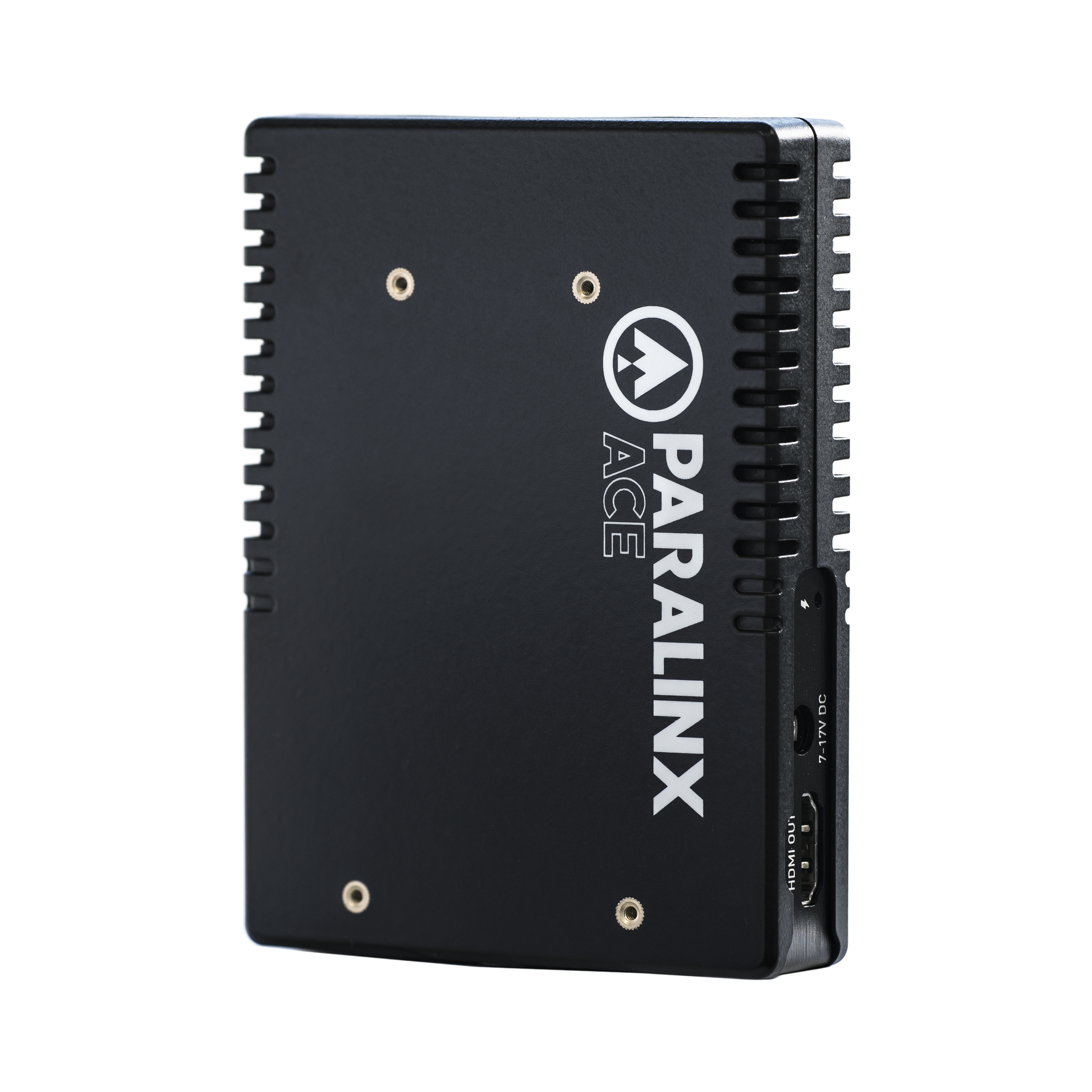

The Paralinx Ace wireless video transmission system is the latest addition to the Paralinx family. Featuring realtime, uncompressed, wireless HD video and available with either SDI or HDMI input/output this compact, rugged, lightweight system is the ultimate short-range wireless solution for professional filmmakers.

The Ace will send HD video signals up to 1080p60 with zero-latency up to a maximum range of 300ft/100m. Each transmitter can multicast to up to 4 receivers and receivers can be paired by the user via an onscreen-display. The rugged aluminum and ABS plastic enclosures are lightweight and feature threaded inserts for attaching an onboard battery plate (LP-E6, NP-F, BP-U) or mounting brackets.

Specifications:
- Zero-latency (less than 1ms)
- Range: Up to 300ft/100m
- Signal Quality: Uncompressed, up to 1080p/60
- Input/Output: SDI or HDMI
- Power: 7-17v 2-Pin input (SDI) or 7-17v DC Barrel input (HDMI)
- Weight (HDMI): 126g (Tx), 146g (Rx)
   Weight (SDI): 146g (Tx), 160g (Rx)
- Enclosure Dimensions (HDMI or SDI):
Tx: 2.6in x 4.7in x 0.6in (6.7cm x 11.9cm x 1.5cm)
Rx: 3.4in x 4.5in x 0.6in (8.6cm x 11.5cm x 1.5cm)
